Sash and Case Windows

Sash Balance 50-63

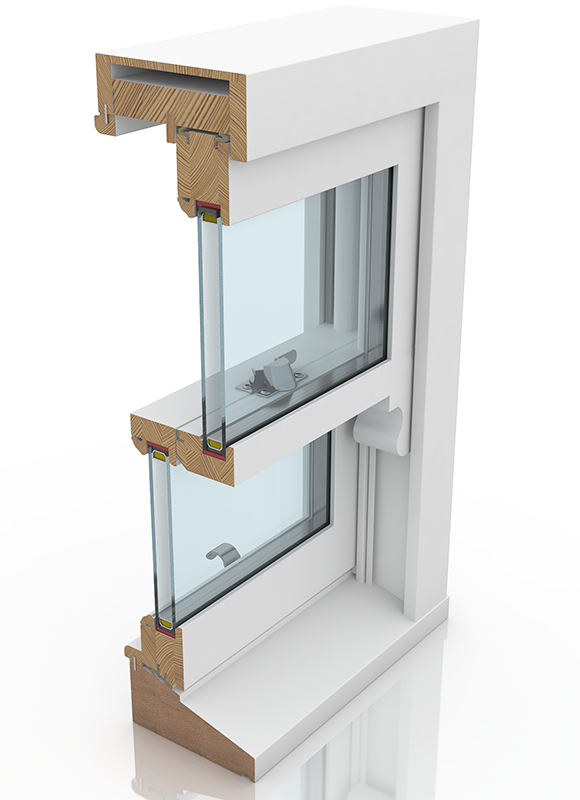

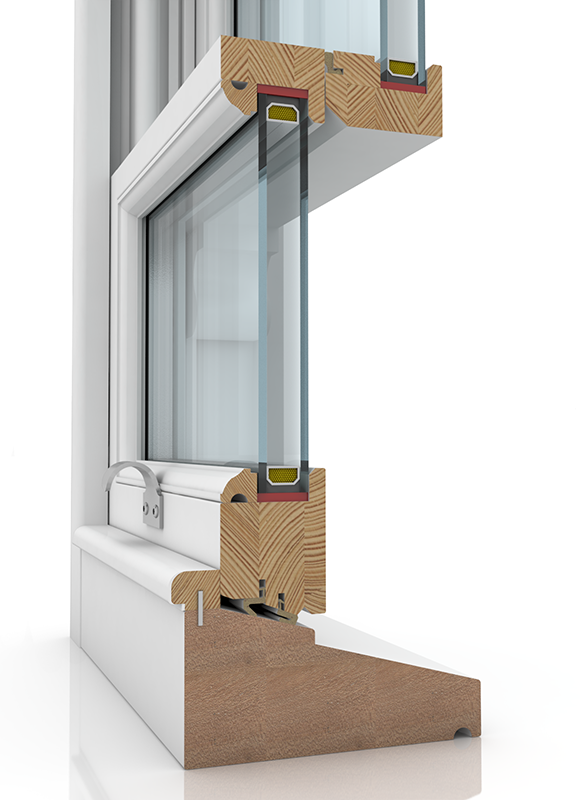

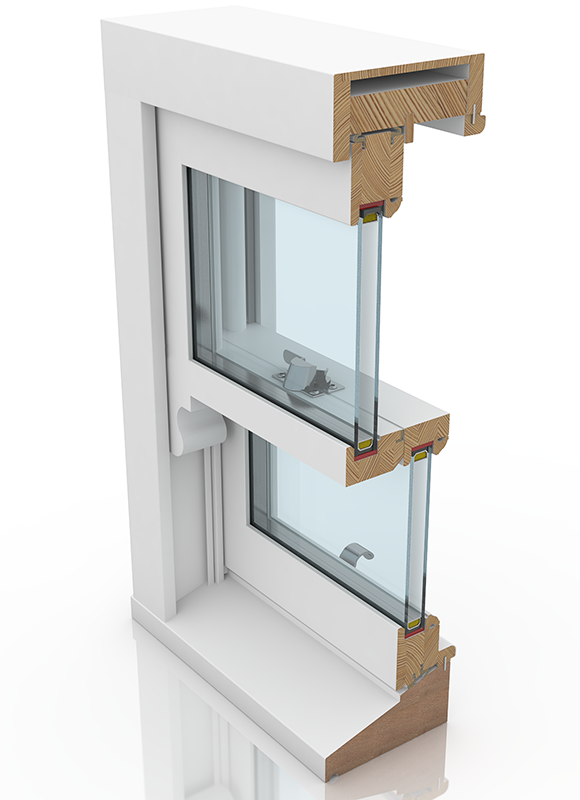

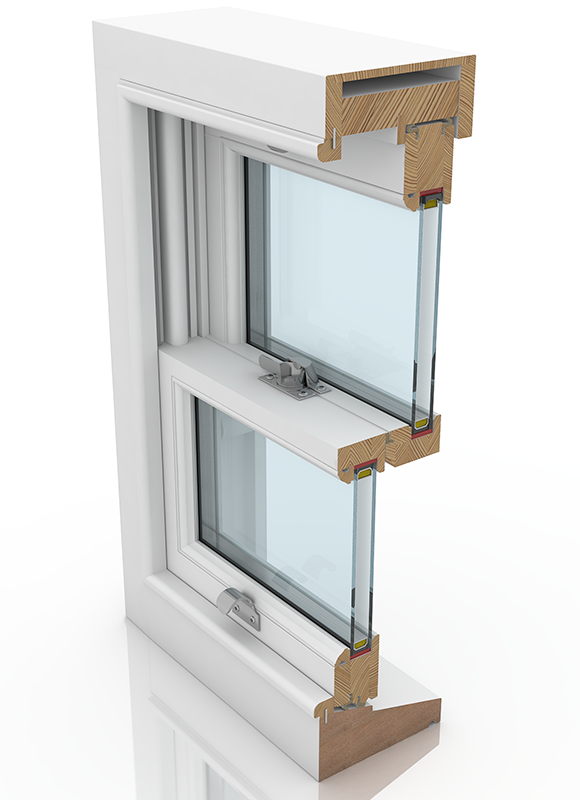

The Sash Balance 50-63 profile is a premium option for sash and case windows, designed to offer modern functionality while preserving the classic look of traditional windows. Here are the key details for double-glazed sash and case windows using this profile:

Energy Efficiency: Double-glazed units fitted into this profile offer excellent thermal insulation, helping homeowners reduce heating costs while maintaining a consistent temperature indoors. The extra depth of the profile further boosts the insulating properties, making it ideal for colder climates.
Durability: The 50-63 profile is designed to handle the weight of larger double-glazed panes while maintaining the window’s structural integrity over time. This ensures long-lasting performance without the risk of warping or wear.
Aesthetic Appeal: While the profile accommodates modern glazing technology, it preserves the slim sightlines and intricate details typical of traditional sash and case windows. This makes it a suitable choice for both modern properties and historical restorations where appearance is paramount.
Custom Options: Available in a variety of timber finishes and colors, the profile can be customized to match the aesthetic of different architectural styles. Whether you are restoring an older building or adding a classic touch to a new home, the Sash Balance 50-63 offers flexibility.
Noise Reduction: The profile’s depth, combined with double glazing, also contributes to a significant reduction in outside noise, making it a popular choice for properties located in busy or urban areas.

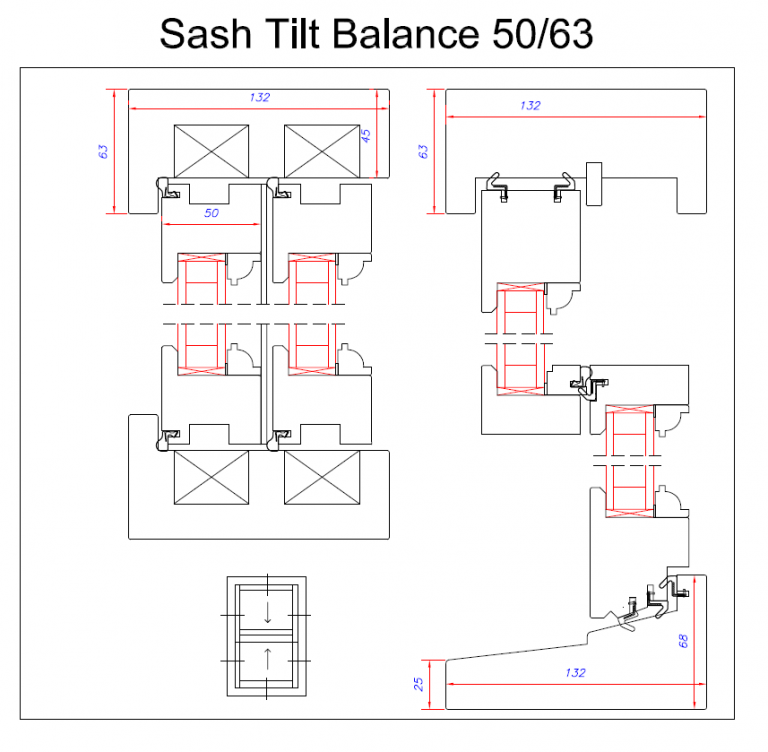

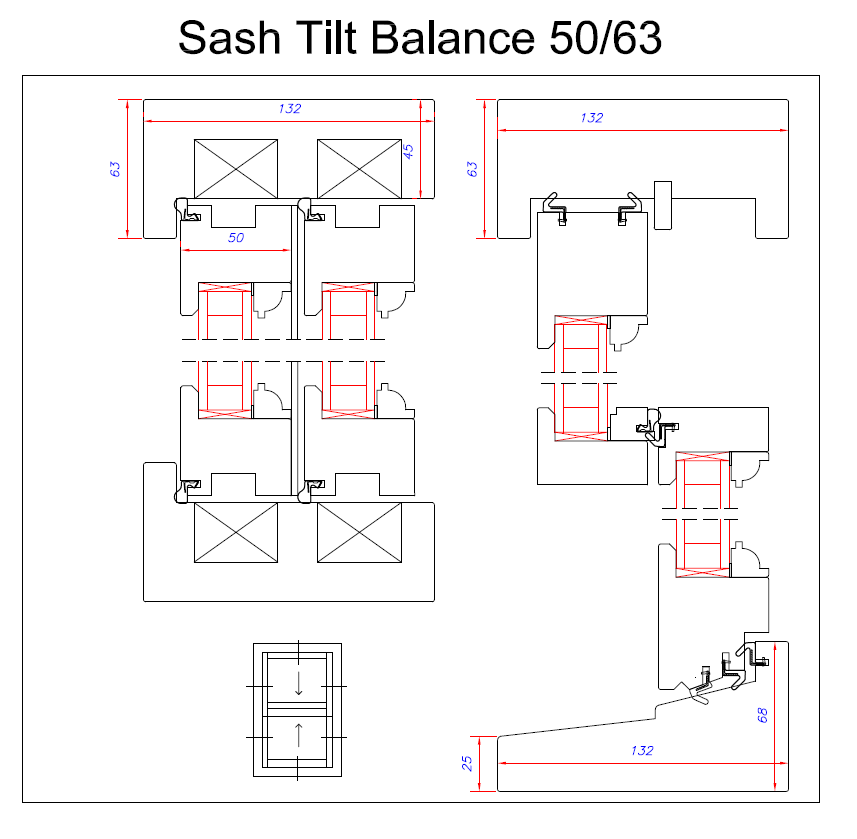

Frame Dimensions:

Frame depth: 132 mm
Frame width (outer): 63 mm
The sash depth is 50 mm

Materials:

Frame Material: High-quality timber, engineered for durability and traditional aesthetics
Glazing type: Low-E glass, argon-filled, toughened and laminated glass options are available for added thermal performance and security.

Thermal Performance:

U-value (Double glazing): Typically around 1.3 W/m²K depending on specific glass type and configuration
Thermal breaks: Integrated in the frame for improved insulation

Weather Sealing:

Double-layer weather seals for enhanced draught-proofing and protection from the elements
Sealing material: High-quality silicone or rubber seals ensure tight closure and improved weather resistance

Soundproofing:

Double glazing: Reduces sound by up to 32 dB, ideal for urban or noisy environments

Ventilation Options:

Trickle vents: Available for improved airflow and reduced condensation
Sliding sash mechanism: Includes counterbalance weights for easy operation

Security Features:

Locking system: Multi-point locking system, optional key-locking mechanism for enhanced security
Glazing security: Toughened or laminated glass options available for increased resistance to impact

Finishes:

Paint or Stain Finish: Available in a wide range of colors to suit any design requirements, including RAL colors and traditional wood stains
Surface treatment: Factory-applied coatings to protect against weathering, UV exposure, and wear

Certifications:

Energy efficiency ratings: A-rated windows depending on glazing and frame materials
Compliance with building regulations: Meets or exceeds local standards for thermal insulation, soundproofing, and structural integrity (e.g., UK’s Part L for energy efficiency)
