Sash and Case Windows

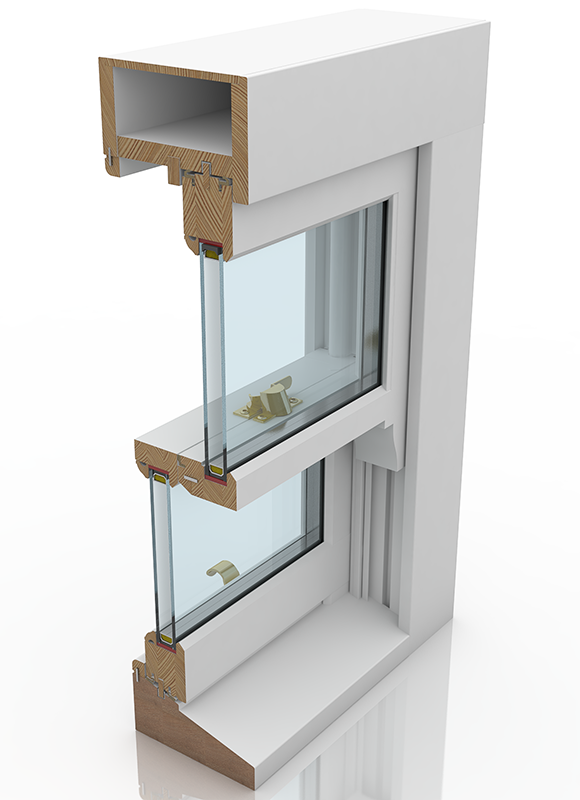

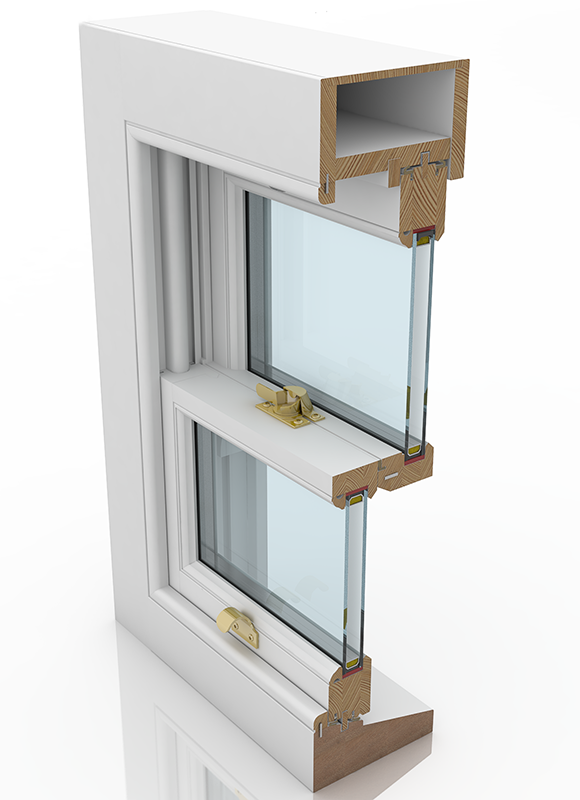

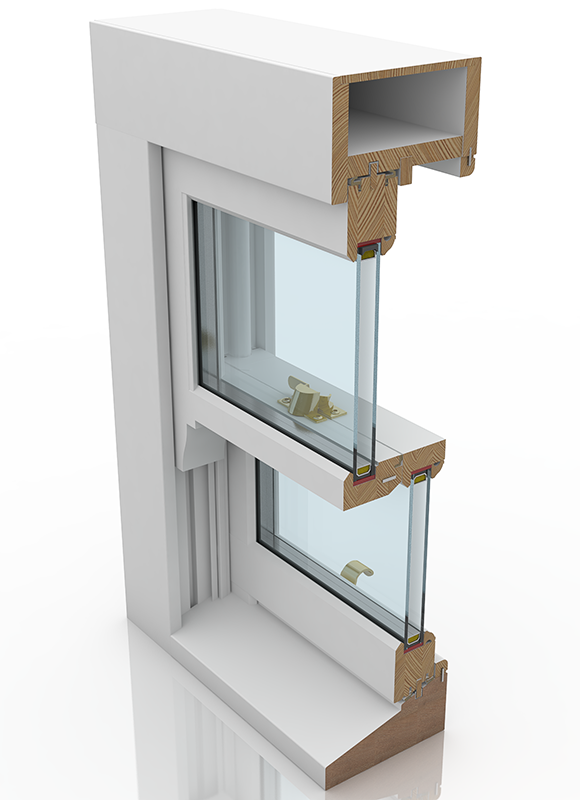

Sash BPL 150

The Sash BPL 150 profile is a premium solution for sash and case windows, designed to accommodate double glazing while providing advanced insulation, noise reduction, and durability. Here’s an overview of its specifications and benefits:

Thermal Performance: Designed for double glazing, the BPL 150 profile delivers top-tier insulation, reducing heat transfer and improving indoor temperature stability.
The depth of the profile allows for thicker glazing units, which further enhances thermal efficiency and can help significantly reduce heating and cooling costs.
Acoustic Insulation: With triple glazing, the BPL 150 profile offers superior soundproofing, making it ideal for homes in high-noise areas. This feature provides a quieter and more comfortable living space.
Aesthetic Flexibility: Despite its deep profile, the BPL 150 maintains the classic, elegant look of traditional sash windows. Its slim sightlines and smooth finish make it suitable for both heritage buildings and contemporary properties.

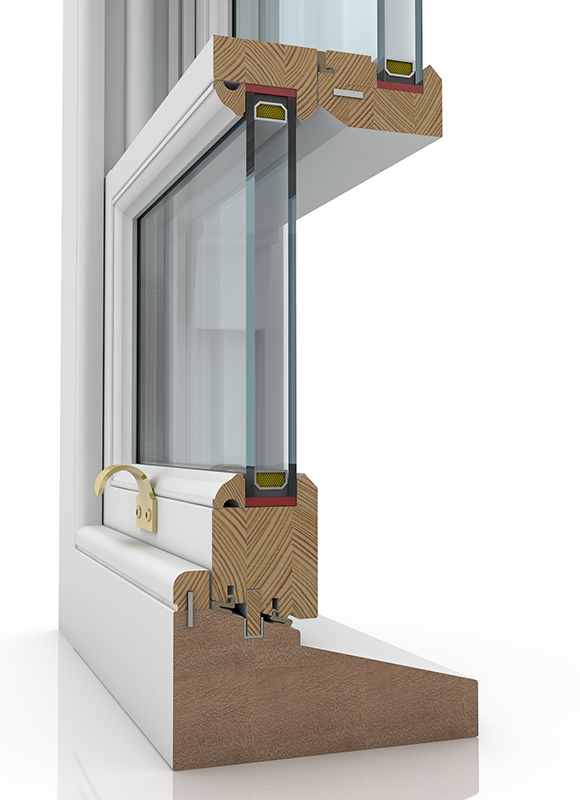

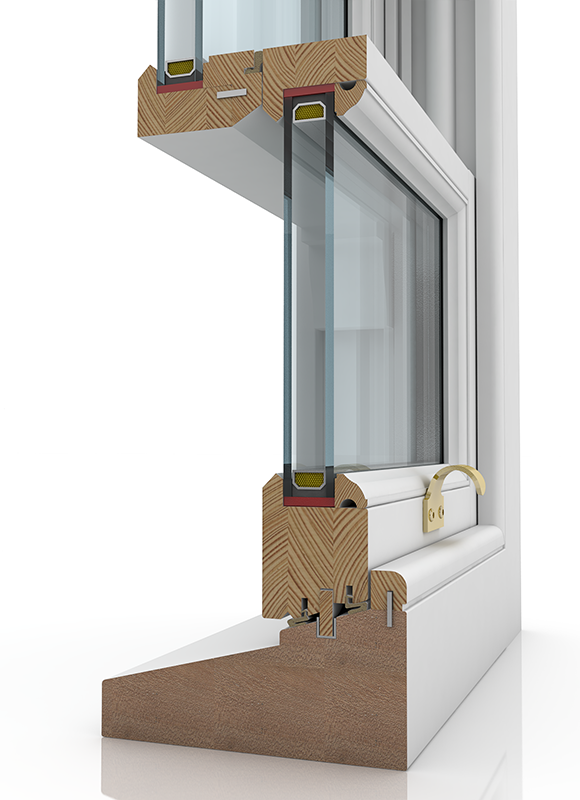

Frame Dimensions:

Frame depth: 150 mm
Frame width (outer): 86 mm
The sash depth is 50 mm

Materials:

Frame Material: Constructed from high-quality timber, treated for moisture resistance and durability.
Glazing type: Low-E glass, argon-filled, toughened and laminated glass options are available for added thermal performance and security.

Thermal Performance:

Double Glazing Compatibility: Allows for enhanced insulation, reducing heat loss and meeting modern energy standards.
Thermal Break Technology: Integrated thermal breaks to prevent cold bridging, further improving energy efficiency.

Weather Sealing:

Equipped with advanced weather seals to protect against drafts and water ingress, suitable for harsh weather conditions. resistance

Soundproofing:

Double glazing: Reduces sound by up to 32 dB, ideal for urban or noisy environments
86 mm frame width and double glazing provide excellent sound insulation, ideal for urban or high-noise areas

Ventilation Options:

Trickle Ventilation: Optional vents for controlled airflow.
Tilt Function: Allows safe ventilation without fully opening the sash.

Security Features:

Enhanced Locking Mechanisms: Reinforced locks for increased resistance to break-ins.
Safety Glass Options: Available with laminated or toughened glass for added impact resistance.

Finishes:

Available in multiple finishes, including natural wood stains, painted finishes, and custom RAL colors.
UV-resistant coatings for long-lasting color integrity.
